BizTalk Migration

BizTalk Server 2020 mainstream support ends in 2028. Choose the right target platform — and the right partner — before the window narrows.

The Case for Acting Now

Microsoft BizTalk Server has been a reliable enterprise integration platform for over two decades, but Microsoft has signaled its end-of-life trajectory: mainstream support for BizTalk Server 2020 ends in 2028, with extended support concluding in 2030. Organizations that delay face shrinking timelines, a dwindling pool of BizTalk-experienced engineers, and the risk of running mission-critical integration on unsupported infrastructure.

The good news: this is a solved problem. Behaim has completed BizTalk migrations to multiple target platforms, and our AI-assisted tooling — built specifically for BizTalk's XLANG orchestrations, EDI pipelines, and trading partner configurations — reduces the most expensive part of the project by 40–60%.

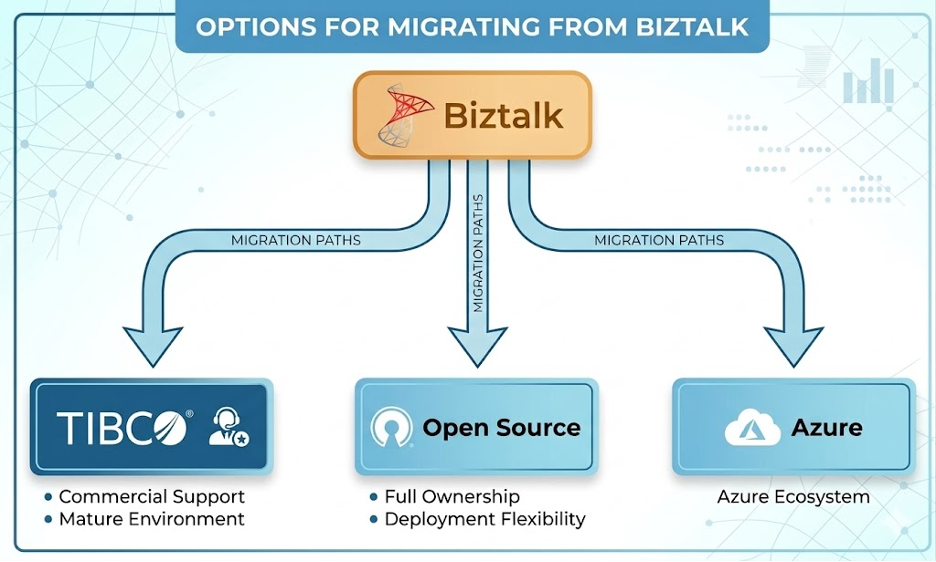

Three Migration Targets

Most organizations running BizTalk are deployed on Virtual Machines — on-premises or in Azure. All three paths move you to a modern, containerized, Kubernetes-based architecture. The differences lie in cloud flexibility, vendor dependency, and total cost of ownership.

Microsoft Azure

Stay in the Microsoft ecosystem with Azure Integration Services and Logic Apps. Natural fit for Azure-committed organizations.

Details below

TIBCO Platform

BusinessWorks + BusinessConnect + EMS on any cloud or on-prem. Purpose-built B2B/EDI and Behaim's recommended path for complex environments.

Details below

Apache Camel

Open source, any cloud, zero vendor lock-in. Eliminates both BizTalk and replacement platform licensing entirely.

Details below

Option 1: Public Cloud

Microsoft Azure Integration Services

Logic Apps, Service Bus, API Management, and Event Grid cover most of what BizTalk does for messaging and orchestration. If your organization is already Azure-committed, staying in the Microsoft ecosystem minimizes change management and leverages existing skills and governance tooling.

Familiar tooling — existing Azure skills, Entra ID, and Azure Monitor apply directly. Minimal retraining for operations teams.
Managed PaaS — no infrastructure to operate. Microsoft handles patching, scaling, and availability for all integration services.
Public cloud only — no supported path to on-premises or private cloud deployment without significant rework. Regulated industries with data residency requirements may face constraints.
Replaces one lock-in with another — Azure dependency substitutes for BizTalk dependency. Future migrations away from Azure carry the same challenges you face today.
B2B/EDI requires extra assembly — no direct equivalent to BizTalk's EDI pipeline or BusinessConnect's trading partner management. X12 and EDIFACT processing requires additional configuration and third-party components.

Option 2: Any Cloud or On-Premises

TIBCO BusinessWorks + BusinessConnect + EMS

Behaim's recommended path for organizations with complex B2B/EDI requirements or those that need deployment flexibility. Three components replace the full BizTalk stack with clear architectural boundaries — internal integration cleanly separated from external partner communications.

TIBCO BusinessWorks Container Edition (BWCE) — the core integration engine, replacing BizTalk orchestrations and pipelines. Runs as containerized microservices on Kubernetes (AKS, Amazon EKS, GKE, or private clusters), enabling independent scaling and zero-downtime rolling deployments.
TIBCO BusinessConnect Container Edition (BCCE) — purpose-built B2B gateway replacing BizTalk's party management, EDI pipelines, and AS2 adapter. Handles EDI translation (X12, EDIFACT), secure transports (AS2, SFTP), partner configuration, agreement management, and compliance tracking natively.
TIBCO Enterprise Message Service (EMS) — the messaging backbone connecting BWCE and BCCE. JMS-compliant with guaranteed delivery, message persistence, and pub-sub, supporting both request-reply and fire-and-forget patterns.
Any cloud or on-prem — identical deployment on AKS, Amazon EKS, GKE, or a private Kubernetes cluster. No forced dependency on a single cloud provider.
Trading partner onboarding becomes a configuration activity in BCCE rather than a development task, accelerating new partner integration timelines significantly.
20+ years of Behaim TIBCO expertise — as a TIBCO partner, Behaim has delivered production migrations on this stack and provides ongoing platform support post go-live. Commercial TIBCO licensing applies.

Read the full technical brief for a detailed walkthrough of a BizTalk to TIBCO migration, including architecture diagrams and effort estimates.

BizTalk to TIBCO — Technical Brief

Architecture diagrams, component mappings, and a phased project plan for a production BizTalk to TIBCO migration.

Read the technical brief

Option 3: Any Cloud or On-Premises

Apache Camel — Open Source

Apache Camel provides the broadest protocol coverage of any open-source integration framework — 300+ components covering the same adapters and transport protocols as BizTalk. Camel K runs natively on Kubernetes and OpenShift. This is the right path for organizations that want to eliminate both BizTalk licensing and any future commercial platform dependency.

Zero vendor lock-in — integration code is owned entirely by your organization, licensed under Apache License 2.0. No vendor negotiation required for future changes.
Zero licensing cost — eliminates both the BizTalk license and any replacement commercial platform fee. Hardware and operational costs remain, but software licensing drops to zero.
Any cloud or on-prem — identical flexibility to the TIBCO path. Camel K's Kubernetes operator enables the same containerized deployment model.
Large, active ecosystem — 300+ connectors, well-documented patterns, and a large community. Protocol coverage matches or exceeds BizTalk adapters.
Higher in-house capability required — no built-in trading partner management for B2B/EDI. Governance, monitoring, and operational tooling require an additional observability stack. Best suited to teams with strong Java or Kotlin development capability.

How we do it

The Migration Process

Behaim's methodology follows six phases with decision gates between each. The approach prioritizes business continuity — trading partners migrate in batches, with both platforms running in parallel production mode until each batch is validated. There is no big-bang cutover.

The AI layer is what separates this from traditional manual migrations. Custom Behaim AI MCP servers provide specialized extractors for BizTalk-specific constructs — XLANG orchestrations, EDI pipeline components, trading partner agreements — while general-purpose AI services handle dependency mapping and documentation generation.

AI-powered extraction tools inventory the full BizTalk environment: orchestrations, pipelines, schemas, maps, adapters, and trading partner configurations. The output is technology-agnostic Technical As-Is Documentation for each integration flow, validated and refined by human experts.

Inventory of all orchestrations, pipelines, schemas, maps, and trading partner configurations
AI extraction of message flow patterns, transformation rules, and dependencies
Identification of pilot candidates for proof-of-concept implementation
40–60% reduction in documentation timeline versus manual analysis

As-Is documentation is transformed into Detail Design Documents for the target platform. Human architects and integration specialists drive all design decisions — the AI-generated documentation is the foundation, not the final word.

BWCE process flow diagrams and activity configurations
BCCE trading partner profiles, document definitions, and transport configurations
EMS queue and topic architecture with naming conventions and persistence settings
XSLT transformations, exception handling patterns, and rollback procedures per batch

Target platform processes, trading partner configurations, and messaging topology are built from approved Detail Designs. Development runs in parallel with test case creation so nothing waits.

BWCE processes, XSLT transformations, and BCCE partner profiles implemented
Unit and integration tests verify functional equivalence against As-Is documentation
Kubernetes environment hardened — network policies, pod security, resource quotas
Production deployment artifacts prepared: Helm charts and CI/CD pipelines

Selected trading partners participate in UAT before any production cutover. End-to-end message exchange is tested with actual partner systems across document types and volumes — not just synthetic test data.

EDI translation validated: X12, EDIFACT, and any custom document formats
AS2 and SFTP protocol implementations tested with live partner systems
Acknowledgment processing verified: 997, TA1, and MDN
Issues and configuration adjustments documented for use in production batches

The target platform is deployed to production Kubernetes alongside BizTalk. Trading partners are grouped into batches by volume, criticality, and complexity and migrated incrementally — each batch completes a soak period before the next begins.

Batch 1 — low-risk, low-volume partners; 2–4 week soak period
Batch 2 — medium-volume partners; procedures refined from Batch 1 learnings
Batch 3+ — high-volume and critical trading partners
Side-by-side validation compares BizTalk and target platform outputs throughout

The final trading partner batch cuts over, followed by a 30-day parallel soak period with side-by-side validation. Once sign-off is complete, BizTalk is retired.

30-day parallel soak with side-by-side validation for all trading partners
Knowledge transfer: platform administration, troubleshooting, and monitoring
BizTalk Server VMs and associated infrastructure decommissioned
Configurations, orchestrations, and schemas archived for compliance and reference

The Behaim Integration Migrator

The AI tooling described above is the Behaim Integration Migrator. It includes custom MCP servers built specifically for BizTalk's internal formats — XLANG orchestration parsing, EDI pipeline component extraction, and trading partner agreement analysis — not a generic AI wrapper.

The Migrator has already delivered production migrations from BizTalk and other commercial platforms to TIBCO and Apache Camel. It generates documentation as a by-product of analysis, so your team inherits a modernized system and the documentation to support it.

Learn about the Integration Migrator

Start the conversation

Free Migration Assessment

Tell us about your BizTalk environment and we will scope a migration assessment — no commitment required.
