Examination

Section contains description of Process " Examination.process " .

Folder description:

Folder Description
  No description

Process description:

No description

Process definition:

Full process path: ProcessDefinitions/Examination/Examination.process

Diagram:

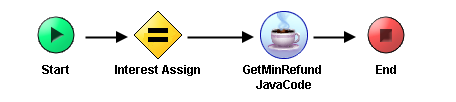

Start End Interest Assign GetMinRefund JavaCode From: Start To: Interest Assign From: Interest Assign To: GetMinRefund JavaCode From: GetMinRefund JavaCode To: End

Process starter activity:

Name: Start

Description:

Input Parameters:

  • + InputParameters (Complex Type, required )
    • - Refund(xsd:long,required)
    • - Salary(xsd:long,required)
    • - Value(xsd:long,required)
    • - Bonita(xsd:short,required)
    • - Pawn(xsd:boolean,required)

Process end activity:

Name: End

Output Parameters:

  • + ExaminationResult (Complex Type, required )
    • - State(xsd:boolean,required)
    • - Interest(xsd:double,required)
Return bindings:

  • Mapping table

    Target Source
    /ExaminationResult/State if(($GetMinRefund-JavaCode/javaCodeActivityOutput/MinRefund <= $Start/InputParameters/Refund) and ($Schema0/Interest > 0))then 1 else 0
    /ExaminationResult/Interest $Schema0/Interest

  • Mapping tree

    Mapping
    ExaminationResult
 State = if(($GetMinRefund-JavaCode/javaCodeActivityOutput/MinRefund <= $Start/InputParameters/Refund) and  ($Schema0/Interest > 0))then 1 else 0
 Interest = $Schema0/Interest

  • Source code

    Mapping
            <ExaminationResult xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
            <State>
                <xsl:value-of select="if(($GetMinRefund-JavaCode/javaCodeActivityOutput/MinRefund &lt;= $Start/InputParameters/Refund) and  ($Schema0/Interest &gt; 0))then 1 else 0"/>
            </State>
            <Interest>
                <xsl:value-of select="$Schema0/Interest"/>
            </Interest>
        </ExaminationResult>

Process variables:

Schema: Schema0

  • - Interest(xsd:double,required)

Activities:

Name: GetMinRefund JavaCode

  • Type: com.tibco.plugin.java.JavaActivity
  • Resource Type: ae.javapalette.javaActivity
  • Description:
  • Configuration:
    • fileName = ExaminationGetMinRefundJavaCode
    • packageName = ProcessDefinitions.Examination.Examination
    • fullsource = package ProcessDefinitions.Examination.Examination; import java.util.*; import java.io.*; import java.lang.Math; public class ExaminationGetMinRefundJavaCode{ /****** START SET/GET METHOD, DO NOT MODIFY *****/ protected long Years = 0; protected double Interest = 0.0d; protected long Value = 0; protected long MinRefund = 0; public long getYears() { return Years; } public void setYears(long val) { Years = val; } public double getInterest() { return Interest; } public void setInterest(double val) { Interest = val; } public long getValue() { return Value; } public void setValue(long val) { Value = val; } public long getMinRefund() { return MinRefund; } public void setMinRefund(long val) { MinRefund = val; } /****** END SET/GET METHOD, DO NOT MODIFY *****/ private double power(double x, long y) { double result = x; for(long i = 0; i < y-1; i++) { result = result * x; } return result; } public ExaminationGetMinRefundJavaCode() { double temp = power((1 + 0.10/12),(getYears()*12)); setMinRefund((long)Math.round((getValue() * getInterest() /12 *temp) / (temp-1))); } public void invoke() throws Exception { /* Available Variables: DO NOT MODIFY In : long Years In : double Interest In : long Value Out : long MinRefund * Available Variables: DO NOT MODIFY *****/ } }
    • inputData
      • row
        • fieldName = Years
        • fieldType = long
        • fieldRequired = required
      • row
        • fieldName = Interest
        • fieldType = double
        • fieldRequired = required
      • row
        • fieldName = Value
        • fieldType = long
        • fieldRequired = required
    • outputData
      • row
        • fieldName = MinRefund
        • fieldType = long
        • fieldRequired = required
    • byteCode
      • class
        • name = ExaminationGetMinRefundJavaCode
        • byteCode (Java bytecode is ignored in this documentation)
  • Input bindings:

    • Mapping table

      Target Source
      /javaCodeActivityInput/Years 20
      /javaCodeActivityInput/Interest $Schema0/Interest * 0.01
      /javaCodeActivityInput/Value $Start/InputParameters/Value

    • Mapping tree

      Mapping
      javaCodeActivityInput
 Years = 20
 Interest = $Schema0/Interest * 0.01
 Value = $Start/InputParameters/Value

    • Source code

      Mapping
                  <javaCodeActivityInput xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
                <Years>
                    <xsl:value-of select="20"/>
                </Years>
                <Interest>
                    <xsl:value-of select="$Schema0/Interest * 0.01"/>
                </Interest>
                <Value>
                    <xsl:value-of select="$Start/InputParameters/Value"/>
                </Value>
            </javaCodeActivityInput>

Name: Interest Assign

  • Type: com.tibco.pe.core.AssignActivity
  • Resource Type: ae.activities.assignActivity
  • Description:
  • Configuration:
    • variableName = Schema0
  • Input bindings:

    • Mapping table

      Target Source
      /Interest if($Start/InputParameters/Bonita >= 4) then 3 else if($Start/InputParameters/Bonita >= 3) then 3.5 else if($Start/InputParameters/Bonita >= 2) then 4 else if($Start/InputParameters/Bonita >= 1) then 4.5 else 0

    • Mapping tree

      Mapping
      Interest = if($Start/InputParameters/Bonita >= 4) then 3 else
 if($Start/InputParameters/Bonita >= 3) then 3.5 else
 if($Start/InputParameters/Bonita >= 2) then 4 else
 if($Start/InputParameters/Bonita >= 1) then 4.5 else 0

    • Source code

      Mapping
                  <Interest xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
                <xsl:value-of select="if($Start/InputParameters/Bonita &gt;= 4) then 3 else&#xA;if($Start/InputParameters/Bonita &gt;= 3) then 3.5 else&#xA;if($Start/InputParameters/Bonita &gt;= 2) then 4 else&#xA;if($Start/InputParameters/Bonita &gt;= 1) then 4.5 else 0"/>
            </Interest>

Transitions:

  • From: GetMinRefund JavaCode -To: End
    • Label:
    • Condition: Success
    • Description:
  • From: Interest Assign -To: GetMinRefund JavaCode
    • Label:
    • Condition: Success
    • Description:
  • From: Start -To: Interest Assign
    • Label:
    • Condition: Success
    • Description:
