CreateInputFile

Section contains description of Process " CreateInputFile.process " .

Folder description:

Folder Description
GrantingCredit The application Granting credit provides resolution whether a credit (or mortgage) can be granded to a user. Information about user is the input of the application.
/ProcessDefinitions All process definitions

Process description:

No description

Process definition:

Full process path: ProcessDefinitions/XMLCreator/CreateInputFile.process

Diagram:

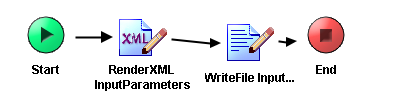

Start End RenderXML InputParameters WriteFile InputFile From: Start To: RenderXML InputParameters From: RenderXML InputParameters To: WriteFile InputFile From: WriteFile InputFile To: End

Process starter activity:

Name: Start

Description:

Process end activity:

Name: End

Activities:

Name: RenderXML InputParameters

  • Type: com.tibco.plugin.xml.XMLRendererActivity
  • Resource Type: ae.activities.XMLRendererActivity
  • Description:
  • Configuration:
    • renderAsText = text
    • validateInput = true
    • textEncoding = UTF-8
    • renderDefaultPrefix = true
    • term
  • Input bindings:

    • Mapping table

      Target Source
      /InputParameters/Name "Jan Novak"
      /InputParameters/Value 750000
      /InputParameters/Refund 5000
      /InputParameters/Salary 20000
      /InputParameters/Pawn 1
      /InputParameters/RealtyDetail "Realty no: 1587649"
      /InputParameters/RealtyValue 1500000

    • Mapping tree

      Mapping
      InputParameters
 Name = "Jan Novak"
 Value = 750000
 Refund = 5000
 Salary = 20000
 Pawn = 1
 RealtyDetail = "Realty no: 1587649"
 RealtyValue = 1500000

    • Source code

      Mapping
                  <pfx:InputParameters xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:pfx="http://www.tibco.com/schemas/GrantingCredit/SharedConnections/Schema.xsd" xmlns:ns="http://www.tibco.com/pe/DeployedVarsType" xmlns:ns2="http://www.tibco.com/namespaces/tnt/plugins/file">
                <pfx:Name>
                    <xsl:value-of select="&#34;Jan Novak&#34;"/>
                </pfx:Name>
                <pfx:Value>
                    <xsl:value-of select="750000"/>
                </pfx:Value>
                <pfx:Refund>
                    <xsl:value-of select="5000"/>
                </pfx:Refund>
                <pfx:Salary>
                    <xsl:value-of select="20000"/>
                </pfx:Salary>
                <pfx:Pawn>
                    <xsl:value-of select="1"/>
                </pfx:Pawn>
                <pfx:RealtyDetail>
                    <xsl:value-of select="&#34;Realty no: 1587649&#34;"/>
                </pfx:RealtyDetail>
                <pfx:RealtyValue>
                    <xsl:value-of select="1500000"/>
                </pfx:RealtyValue>
            </pfx:InputParameters>

Name: WriteFile InputFile

  • Type: com.tibco.plugin.file.FileWriteActivity
  • Resource Type: ae.activities.FileWriteActivity
  • Description:
  • Configuration:
    • encoding = text
    • compressFile = None
  • Input bindings:

    • Mapping table

      Target Source
      /WriteActivityInputTextClass/fileName $_globalVariables/ns:GlobalVariables/DefaultInputParametersFile
      /WriteActivityInputTextClass/textContent $RenderXML-InputParameters/xmlString

    • Mapping tree

      Mapping
      WriteActivityInputTextClass
 fileName = $_globalVariables/ns:GlobalVariables/DefaultInputParametersFile
 textContent = $RenderXML-InputParameters/xmlString

    • Source code

      Mapping
                  <ns2:WriteActivityInputTextClass xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:pfx="http://www.tibco.com/schemas/GrantingCredit/SharedConnections/Schema.xsd" xmlns:ns="http://www.tibco.com/pe/DeployedVarsType" xmlns:ns2="http://www.tibco.com/namespaces/tnt/plugins/file">
                <fileName>
                    <xsl:value-of select="$_globalVariables/ns:GlobalVariables/DefaultInputParametersFile"/>
                </fileName>
                <textContent>
                    <xsl:value-of select="$RenderXML-InputParameters/xmlString"/>
                </textContent>
            </ns2:WriteActivityInputTextClass>

Transitions:

  • From: RenderXML InputParameters -To: WriteFile InputFile
    • Label:
    • Condition: Success
    • Description:
  • From: Start -To: RenderXML InputParameters
    • Label:
    • Condition: Success
    • Description:
  • From: WriteFile InputFile -To: End
    • Label:
    • Condition: Success
    • Description:
