GrantingCredit

Section contains description of Process " GrantingCredit.process " .

Folder description:

Folder Description
GrantingCredit The application Granting credit provides resolution whether a credit (or mortgage) can be granded to a user. Information about user is the input of the application.
/ProcessDefinitions All process definitions

Process description:

No description

Process definition:

Full process path: ProcessDefinitions/GrantingCredit.process

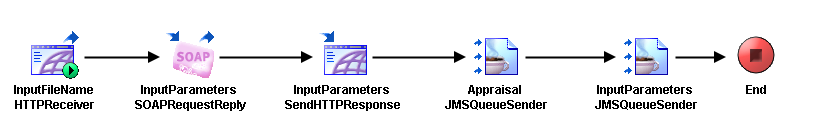

Diagram:

InputFileName HTTPReceiver End InputParameters SendHTTPResponse InputParameters SOAPRequestReply InputParameters JMSQueueSender Appraisal JMSQueueSender From: InputFileName HTTPReceiver To: InputParameters SOAPRequestReply From: InputParameters SOAPRequestReply To: InputParameters SendHTTPResponse From: InputParameters JMSQueueSender To: End From: InputParameters SendHTTPResponse To: Appraisal JMSQueueSender From: Appraisal JMSQueueSender To: InputParameters JMSQueueSender

Process starter activity:

Name: InputFileName HTTPReceiver

  • Property Name: InputFileName HTTPReceiver
    • Type: com.tibco.plugin.http.HTTPEventSource
    • Resource Type: httppalette.httpEventSource
    • Description:
    • Configuration:
      • outputMode = String
      • defaultEncoding = UTF8
      • inputOutputVersion = 5.3.0
      • newMimeSupport = true
      • sharedChannel = /SharedConnections/InputHTTPConnection.sharedhttp
      • customField
        • row
          • attribute = InputParameters
          • attributeType = string
          • attributeCard = optional
      • Headers
        • + root (Complex Type, required )
          • - Accept(xsd:string,optional)
          • - Accept-Charset(xsd:string,optional)
          • - Accept-Encoding(xsd:string,optional)
          • - Content-Type(xsd:string,optional)
          • - Content-Length(xsd:string,optional)
          • - Connection(xsd:string,optional)
          • - Cookie(xsd:string,optional)
          • - Pragma(xsd:string,optional)

Process end activity:

Name: End

Activities:

Name: Appraisal JMSQueueSender

  • Type: com.tibco.plugin.jms.JMSQueueSendActivity
  • Resource Type: ae.activities.JMSQueueSendActivity
  • Description:
  • Configuration:
    • PermittedMessageType = XML Text
    • SessionAttributes
      • transacted = false
      • acknowledgeMode = 1
      • maxSessions = 1
      • destination = %%ENV%%.%%AppraisalJMSQueueRequestName%%
    • ConfigurableHeaders
      • JMSDeliveryMode = PERSISTENT
      • JMSExpiration = 0
      • JMSPriority = 4
    • ConnectionReference = /SharedConnections/EMSConnection.sharedjmscon
    • ApplicationProperties =
    • InDataxsdString
  • Input bindings:

    • Mapping table

      Target Source
      /ActivityInput/Body/AppraisalRequest/Name $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Name
      /ActivityInput/Body/AppraisalRequest/RealtyDetail $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyDetail
      /ActivityInput/Body/AppraisalRequest/Pawn $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Pawn

    • Mapping tree

      Mapping
      ActivityInput
 Body
  AppraisalRequest
   Name = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Name
   RealtyDetail = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyDetail
   Pawn = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Pawn

    • Source code

      Mapping
                  <ns2:ActivityInput xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:pfx="http://xmlns.example.com/1171295149828/LoadParametersServiceOperationImpl" xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns:ns="http://www.tibco.com/schemas/GrantingCredit/SharedConnections/Schema.xsd" xmlns:ns1="http://www.tibco.com/pe/DeployedVarsType" xmlns:ns2="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/AESchema" xmlns:pfx3="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/GrantingCreditAESchema" xmlns:pfx4="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/CalculateBonitaAESchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:pfx5="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalAESchema">
                <Body>
                    <pfx5:AppraisalRequest>
                        <Name>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Name"/>
                        </Name>
                        <RealtyDetail>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyDetail"/>
                        </RealtyDetail>
                        <Pawn>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Pawn"/>
                        </Pawn>
                    </pfx5:AppraisalRequest>
                </Body>
            </ns2:ActivityInput>

Name: InputParameters JMSQueueSender

  • Type: com.tibco.plugin.jms.JMSQueueSendActivity
  • Resource Type: ae.activities.JMSQueueSendActivity
  • Description:
  • Configuration:
    • PermittedMessageType = XML Text
    • SessionAttributes
      • transacted = false
      • acknowledgeMode = 1
      • maxSessions = 1
      • destination = %%ENV%%.%%JMSQueueName%%
    • ConfigurableHeaders
      • JMSDeliveryMode = PERSISTENT
      • JMSExpiration = 0
      • JMSPriority = 4
      • JMSReplyTo =
    • ConnectionReference = /SharedConnections/EMSConnection.sharedjmscon
    • ApplicationProperties = /SharedResources/JMSApplicationProperties.sharedjmsapp
    • InDataxsdString
  • Input bindings:

    • Mapping table

      Target Source
      /ActivityInput/OtherProperties/Part "InputParameters"
      /ActivityInput/Body/InputParameters/Name $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Name
      /ActivityInput/Body/InputParameters/Value $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Value
      /ActivityInput/Body/InputParameters/Salary $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Salary
      /ActivityInput/Body/InputParameters/Refund $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Refund
      /ActivityInput/Body/InputParameters/Pawn $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Pawn
      /ActivityInput/Body/InputParameters/RealtyDetail $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyDetail
      /ActivityInput/Body/InputParameters/RealtyValue $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyValue

    • Mapping tree

      Mapping
      ActivityInput
 OtherProperties
  Part = "InputParameters"
 Body
  InputParameters
   Name = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Name
   Value = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Value
   Salary = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Salary
   Refund = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Refund
   Pawn = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Pawn
   RealtyDetail = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyDetail
   RealtyValue = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyValue

    • Source code

      Mapping
                  <ns2:ActivityInput xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:pfx="http://xmlns.example.com/1171295149828/LoadParametersServiceOperationImpl" xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns:ns="http://www.tibco.com/schemas/GrantingCredit/SharedConnections/Schema.xsd" xmlns:ns1="http://www.tibco.com/pe/DeployedVarsType" xmlns:ns2="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/AESchema" xmlns:pfx3="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/GrantingCreditAESchema" xmlns:pfx4="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/CalculateBonitaAESchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:pfx5="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalAESchema">
                <OtherProperties>
                    <Part>
                        <xsl:value-of select="&#34;InputParameters&#34;"/>
                    </Part>
                </OtherProperties>
                <Body>
                    <pfx3:InputParameters>
                        <Name>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Name"/>
                        </Name>
                        <Value>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Value"/>
                        </Value>
                        <Salary>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Salary"/>
                        </Salary>
                        <Refund>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Refund"/>
                        </Refund>
                        <Pawn>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Pawn"/>
                        </Pawn>
                        <RealtyDetail>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyDetail"/>
                        </RealtyDetail>
                        <RealtyValue>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyValue"/>
                        </RealtyValue>
                    </pfx3:InputParameters>
                </Body>
            </ns2:ActivityInput>

Name: InputParameters SOAPRequestReply

  • Type: com.tibco.plugin.soap.SOAPSendReceiveActivity
  • Resource Type: ae.activities.SOAPSendReceiveUI
  • Description:
  • Configuration:
    • timeout = 0
    • service = pfx:LoadParametersService
    • servicePort = InputFileName_sp_from_sp_SOAPEventSource
    • operation = LoadParametersServiceOperation
    • soapAction = /ProcessDefinitions/LoadParameters/LoadParametersService
    • endpointURL = %%LoadParametersServiceEndpointURL%%
    • useProxy = false
    • requireBasicAuth = false
    • basicHttpAuthIdentity =
  • Input bindings:

    • Mapping table

      Target Source
      /inputMessage/InputFile/FileName $InputFileName-HTTPReceiver/ProcessStarterOutput/parameters/InputParameters

    • Mapping tree

      Mapping
      inputMessage
 InputFile
  FileName = $InputFileName-HTTPReceiver/ProcessStarterOutput/parameters/InputParameters

    • Source code

      Mapping
                  <inputMessage xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:pfx="http://xmlns.example.com/1171295149828/LoadParametersServiceOperationImpl" xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns:ns="http://www.tibco.com/schemas/GrantingCredit/SharedConnections/Schema.xsd" xmlns:ns1="http://www.tibco.com/pe/DeployedVarsType" xmlns:ns2="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/AESchema" xmlns:pfx3="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/GrantingCreditAESchema" xmlns:pfx4="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/CalculateBonitaAESchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:pfx5="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalAESchema">
                <ns:InputFile>
                    <ns:FileName>
                        <xsl:value-of select="$InputFileName-HTTPReceiver/ProcessStarterOutput/parameters/InputParameters"/>
                    </ns:FileName>
                </ns:InputFile>
            </inputMessage>

Name: InputParameters SendHTTPResponse

  • Type: com.tibco.plugin.http.HTTPResponseActivity
  • Resource Type: httppalette.httpWebResponse
  • Description:
  • Configuration:
    • closeConnection = true
    • eventSource = InputFileName HTTPReceiver
    • Headers
      • + root (Complex Type, required )
        • - StatusLine(xsd:string,optional)
        • - Content-Type(xsd:string,optional)
        • - Set-Cookie(xsd:string,optional)
        • - Pragma(xsd:string,optional)
        • - Location(xsd:string,optional)
  • Input bindings:

    • Mapping table

      Target Source
      /ResponseActivityInput/asciiContent concat("<H1>InputParameters:</H1><B>Name:</B> ", $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Name, "<BR><B>Value: </B>", $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Value, "<BR><B>Refund: </B>", $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Refund, "<BR><B>Salary: </B>", $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Salary, "<BR><B>Pawn: </B>", $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Pawn, "<BR><B>RealtyDetail: </B>", $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyDetail, "<BR><B>RealtyValue: </B>", $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyValue)

    • Mapping tree

      Mapping
      ResponseActivityInput
 asciiContent = concat("<H1>InputParameters:</H1><B>Name:</B>  ",
   $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Name,
   "<BR><B>Value: </B>",
  $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Value,
  "<BR><B>Refund: </B>",
  $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Refund,
  "<BR><B>Salary: </B>",
   $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Salary,
   "<BR><B>Pawn: </B>",
  $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Pawn,
   "<BR><B>RealtyDetail: </B>",
  $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyDetail,
   "<BR><B>RealtyValue: </B>",
  $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyValue)

    • Source code

      Mapping
                  <ResponseActivityInput xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:pfx="http://xmlns.example.com/1171295149828/LoadParametersServiceOperationImpl" xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns:ns="http://www.tibco.com/schemas/GrantingCredit/SharedConnections/Schema.xsd" xmlns:ns1="http://www.tibco.com/pe/DeployedVarsType" xmlns:ns2="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/AESchema" xmlns:pfx3="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/GrantingCreditAESchema" xmlns:pfx4="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/CalculateBonitaAESchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:pfx5="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalAESchema">
                <asciiContent>
                    <xsl:value-of select="concat(&#34;&lt;H1&gt;InputParameters:&lt;/H1&gt;&lt;B&gt;Name:&lt;/B&gt;  &#34;,&#xA; $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Name,&#xA; &#34;&lt;BR&gt;&lt;B&gt;Value: &lt;/B&gt;&#34;, &#xA;$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Value,&#xA;&#34;&lt;BR&gt;&lt;B&gt;Refund: &lt;/B&gt;&#34;,&#xA;$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Refund,&#xA;&#34;&lt;BR&gt;&lt;B&gt;Salary: &lt;/B&gt;&#34;,  &#xA; $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Salary,&#xA; &#34;&lt;BR&gt;&lt;B&gt;Pawn: &lt;/B&gt;&#34;, &#xA;$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Pawn,&#xA; &#34;&lt;BR&gt;&lt;B&gt;RealtyDetail: &lt;/B&gt;&#34;, &#xA;$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyDetail,&#xA; &#34;&lt;BR&gt;&lt;B&gt;RealtyValue: &lt;/B&gt;&#34;, &#xA;$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyValue)"/>
                </asciiContent>
            </ResponseActivityInput>

Transitions:

  • From: Appraisal JMSQueueSender -To: InputParameters JMSQueueSender
    • Label:
    • Condition: Success
    • Description:
  • From: InputFileName HTTPReceiver -To: InputParameters SOAPRequestReply
    • Label:
    • Condition: Success
    • Description:
  • From: InputParameters JMSQueueSender -To: End
    • Label:
    • Condition: Success
    • Description:
  • From: InputParameters SOAPRequestReply -To: InputParameters SendHTTPResponse
    • Label:
    • Condition: Success
    • Description:
  • From: InputParameters SendHTTPResponse -To: Appraisal JMSQueueSender
    • Label:
    • Condition: Success
    • Description:
