ExaminationService

Section contains description of Process " ExaminationService.process " .

Folder description:

Folder Description
GrantingCredit The application Granting credit provides resolution whether a credit (or mortgage) can be granded to a user. Information about user is the input of the application.
/ProcessDefinitions All process definitions
/ProcessDefinitions/Examination Processes for result examination about GrantingCredit

Process description:

No description

Process definition:

Full process path: ProcessDefinitions/Examination/ExaminationService.process

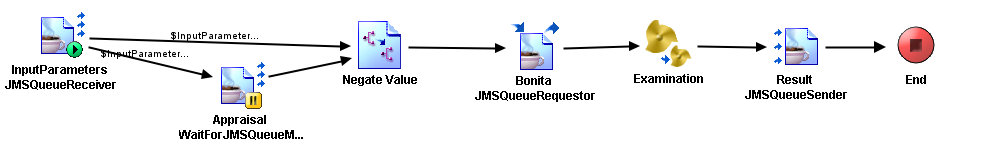

Diagram:

InputParameters JMSQueueReceiver End Bonita JMSQueueRequestor Examination Negate Value Result JMSQueueSender Appraisal WaitForJMSQueueMessage From: Bonita JMSQueueRequestor To: Examination From: InputParameters JMSQueueReceiver To: Negate Value From: Negate Value To: Bonita JMSQueueRequestor From: Examination To: Result JMSQueueSender From: Result JMSQueueSender To: End From: InputParameters JMSQueueReceiver To: Appraisal WaitForJMSQueueMessage From: Appraisal WaitForJMSQueueMessage To: Negate Value

Process starter activity:

Name: InputParameters JMSQueueReceiver

  • Property Name: InputParameters JMSQueueReceiver
    • Type: com.tibco.plugin.jms.JMSQueueEventSource
    • Resource Type: ae.activities.JMSQueueEventSource
    • Description:
    • Configuration:
      • PermittedMessageType = XML Text
      • SessionAttributes
        • transacted = false
        • acknowledgeMode = 1 (Auto)
        • maxSessions = 1
        • destination = %%ENV%%.%%JMSQueueName%%
        • selector = Part='InputParameters'
      • ConfigurableHeaders
        • JMSDeliveryMode = PERSISTENT
        • JMSExpiration = 0
        • JMSPriority = 4
      • ConnectionReference = /SharedConnections/EMSConnection.sharedjmscon
      • OutDataxsdString

Process end activity:

Name: End

Activities:

Name: Appraisal WaitForJMSQueueMessage

  • Type: com.tibco.plugin.jms.JMSQueueSignalInActivity
  • Resource Type: ae.activities.JMSQueueSignalInActivity
  • Description:
  • Configuration:
    • _eventTimeout = 60000
    • PermittedMessageType = XML Text
    • SessionAttributes
      • transacted = false
      • acknowledgeMode = 1 (Auto)
      • maxSessions = -1
      • destination = %%ENV%%.%%AppraisalJMSQueueResultName%%
    • ConfigurableHeaders
      • JMSDeliveryMode = PERSISTENT
      • JMSExpiration = 0
      • JMSPriority = 4
    • ConnectionReference = /SharedConnections/EMSConnection.sharedjmscon
    • ApplicationProperties =
    • OutDataxsdString

Name: Bonita JMSQueueRequestor

  • Type: com.tibco.plugin.jms.JMSQueueRequestReplyActivity
  • Resource Type: ae.activities.JMSQueueRequestReplyActivity
  • Description:
  • Configuration:
    • PermittedMessageType = XML Text
    • SessionAttributes
      • transacted = false
      • acknowledgeMode = 1
      • maxSessions = 1
      • destination = %%ENV%%.%%CalculateBonitaJMSQueueName%%
    • ConfigurableHeaders
      • JMSDeliveryMode = PERSISTENT
      • JMSExpiration = 0
      • JMSPriority = 4
    • ConnectionReference = /SharedConnections/CalculateBonitaEMSConnection.sharedjmscon
    • ApplicationProperties = /SharedResources/JMSApplicationProperties.sharedjmsapp
    • InDataxsdString
    • OutDataxsdString
  • Input bindings:

    • Mapping table

      Target Source
      /ActivityInput/replyToQueue concat($_globalVariables/ns1:GlobalVariables/ENV, $_globalVariables/ns1:GlobalVariables/ExaminationJMSQueueName)
      /ActivityInput/OtherProperties/Part "CalculateBonita"
      /ActivityInput/Body/InputParameters/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name>/Name/@nil [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name/@xsi:nil >
      /ActivityInput/Body/InputParameters/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name>/Name $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name
      /ActivityInput/Body/InputParameters/Value $Negate-Value/Value
      /ActivityInput/Body/InputParameters/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary>/MonthIncrement/@nil [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary/@xsi:nil >
      /ActivityInput/Body/InputParameters/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary>/MonthIncrement $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary
      /ActivityInput/Body/InputParameters/RealtyValue/[WHEN]<exists(if($Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/customerName = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name) then $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue else $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyValue)> if($Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/customerName = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name) then $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue else $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyValue
      /ActivityInput/Body/InputParameters/RealtyValue/[OTHERWISE] [NIL]
      /ActivityInput/Body/InputParameters/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund>/Refund/@nil [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund/@xsi:nil >
      /ActivityInput/Body/InputParameters/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund>/Refund $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund

    • Mapping tree

      Mapping
      ActivityInput
 replyToQueue = concat($_globalVariables/ns1:GlobalVariables/ENV, $_globalVariables/ns1:GlobalVariables/ExaminationJMSQueueName)
 OtherProperties
  Part = "CalculateBonita"
 Body
  InputParameters
   [IF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name >
    Name = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name
     @nil = [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name/@xsi:nil >
   Value = $Negate-Value/Value
   [IF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary >
    MonthIncrement = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary
     @nil = [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary/@xsi:nil >
   RealtyValue
    [CHOOSE]
     [WHEN] < exists(if($Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/customerName =   $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name) then $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue else $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyValue) > = if($Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/customerName =   $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name) then $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue else $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyValue
     [OTHERWISE]
      @xsi:nil = true
   [IF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund >
    Refund = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund
     @nil = [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund/@xsi:nil >

    • Source code

      Mapping
                  <ns:ActivityInput xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:pfx="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/GrantingCreditAESchema" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/CalculateBonitaAESchema" xmlns:ns="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:ns1="http://www.tibco.com/pe/DeployedVarsType" xmlns:pfx3="http://www.tibco.com/pe/SignalInActivitySchema" xmlns:pfx4="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalAESchema">
                <replyToQueue>
                    <xsl:value-of select="concat($_globalVariables/ns1:GlobalVariables/ENV, $_globalVariables/ns1:GlobalVariables/ExaminationJMSQueueName)"/>
                </replyToQueue>
                <OtherProperties>
                    <Part>
                        <xsl:value-of select="&#34;CalculateBonita&#34;"/>
                    </Part>
                </OtherProperties>
                <Body>
                    <pfx2:InputParameters>
                        <xsl:if test="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name">
                            <Name>
                                <xsl:copy-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name/@xsi:nil"/>
                                <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name"/>
                            </Name>
                        </xsl:if>
                        <Value>
                            <xsl:value-of select="$Negate-Value/Value"/>
                        </Value>
                        <xsl:if test="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary">
                            <MonthIncrement>
                                <xsl:copy-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary/@xsi:nil"/>
                                <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary"/>
                            </MonthIncrement>
                        </xsl:if>
                        <RealtyValue>
                            <xsl:choose>
                                <xsl:when test="exists(if($Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/customerName =   $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name) then $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue else $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyValue)">
                                    <xsl:value-of select="if($Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/customerName =   $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name) then $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue else $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyValue"/>
                                </xsl:when>
                                <xsl:otherwise>
                                    <xsl:attribute name="xsi:nil">true</xsl:attribute>
                                </xsl:otherwise>
                            </xsl:choose>
                        </RealtyValue>
                        <xsl:if test="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund">
                            <Refund>
                                <xsl:copy-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund/@xsi:nil"/>
                                <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund"/>
                            </Refund>
                        </xsl:if>
                    </pfx2:InputParameters>
                </Body>
            </ns:ActivityInput>

Name: Examination

  • Type: com.tibco.pe.core.CallProcessActivity
  • Resource Type: ae.process.subprocess
  • Description:
  • Configuration:
  • Input bindings:

    • Mapping table

      Target Source
      /InputParameters/Refund $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund
      /InputParameters/Salary $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary
      /InputParameters/Value $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value
      /InputParameters/Bonita $Bonita-JMSQueueRequestor/ns:ActivityOutput/Body/pfx2:PretenderBonita/Bonita
      /InputParameters/Pawn $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn

    • Mapping tree

      Mapping
      InputParameters
 Refund = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund
 Salary = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary
 Value = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value
 Bonita = $Bonita-JMSQueueRequestor/ns:ActivityOutput/Body/pfx2:PretenderBonita/Bonita
 Pawn = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn

    • Source code

      Mapping
                  <InputParameters xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:pfx="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/GrantingCreditAESchema" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/CalculateBonitaAESchema" xmlns:ns="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:ns1="http://www.tibco.com/pe/DeployedVarsType" xmlns:pfx3="http://www.tibco.com/pe/SignalInActivitySchema" xmlns:pfx4="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalAESchema">
                <Refund>
                    <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund"/>
                </Refund>
                <Salary>
                    <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary"/>
                </Salary>
                <Value>
                    <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value"/>
                </Value>
                <Bonita>
                    <xsl:value-of select="$Bonita-JMSQueueRequestor/ns:ActivityOutput/Body/pfx2:PretenderBonita/Bonita"/>
                </Bonita>
                <Pawn>
                    <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn"/>
                </Pawn>
            </InputParameters>

Name: Negate Value

  • Type: com.tibco.plugin.mapper.MapperActivity
  • Resource Type: ae.activities.MapperActivity
  • Description:
  • Configuration:
    • - Value(xsd:long,required)
  • Input bindings:

    • Mapping table

      Target Source
      /Value - $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value

    • Mapping tree

      Mapping
      Value = -  $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value

    • Source code

      Mapping
                  <Value xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:pfx="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/GrantingCreditAESchema" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/CalculateBonitaAESchema" xmlns:ns="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:ns1="http://www.tibco.com/pe/DeployedVarsType" xmlns:pfx3="http://www.tibco.com/pe/SignalInActivitySchema" xmlns:pfx4="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalAESchema">
                <xsl:value-of select="-  $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value"/>
            </Value>

Name: Result JMSQueueSender

  • Type: com.tibco.plugin.jms.JMSQueueSendActivity
  • Resource Type: ae.activities.JMSQueueSendActivity
  • Description:
  • Configuration:
    • PermittedMessageType = XML Text
    • SessionAttributes
      • transacted = false
      • acknowledgeMode = 1
      • maxSessions = 1
      • destination = %%ENV%%.%%JMSQueueName%%
    • ConfigurableHeaders
      • JMSDeliveryMode = PERSISTENT
      • JMSExpiration = 0
      • JMSPriority = 4
    • ConnectionReference = /SharedConnections/EMSConnection.sharedjmscon
    • ApplicationProperties = /SharedResources/JMSApplicationProperties.sharedjmsapp
    • InDataxsdString
  • Input bindings:

    • Mapping table

      Target Source
      /ActivityInput/OtherProperties/Part "Result"
      /ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name>/Name/@nil [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name/@xsi:nil >
      /ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name>/Name $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name
      /ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value>/Value/@nil [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value/@xsi:nil >
      /ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value>/Value $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value
      /ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund>/Refund/@nil [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund/@xsi:nil >
      /ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund>/Refund $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund
      /ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn>/Pawn/@nil [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn/@xsi:nil >
      /ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn>/Pawn $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn
      /ActivityInput/Body/GrantingCreditResult/Interest $Examination/ExaminationResult/Interest
      /ActivityInput/Body/GrantingCreditResult/State $Examination/ExaminationResult/State
      /ActivityInput/Body/GrantingCreditResult/RealtyValue/@nil [COPY-OF] < $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue/@xsi:nil >
      /ActivityInput/Body/GrantingCreditResult/RealtyValue $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue
      /ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail>/RealtyDetail/@nil [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail/@xsi:nil >
      /ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail>/RealtyDetail $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail

    • Mapping tree

      Mapping
      ActivityInput
 OtherProperties
  Part = "Result"
 Body
  GrantingCreditResult
   [IF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name >
    Name = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name
     @nil = [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name/@xsi:nil >
   [IF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value >
    Value = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value
     @nil = [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value/@xsi:nil >
   [IF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund >
    Refund = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund
     @nil = [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund/@xsi:nil >
   [IF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn >
    Pawn = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn
     @nil = [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn/@xsi:nil >
   Interest = $Examination/ExaminationResult/Interest
   State = $Examination/ExaminationResult/State
   RealtyValue = $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue
    @nil = [COPY-OF] < $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue/@xsi:nil >
   [IF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail >
    RealtyDetail = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail
     @nil = [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail/@xsi:nil >

    • Source code

      Mapping
                  <ns:ActivityInput xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:pfx="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/GrantingCreditAESchema" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/CalculateBonitaAESchema" xmlns:ns="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:ns1="http://www.tibco.com/pe/DeployedVarsType" xmlns:pfx3="http://www.tibco.com/pe/SignalInActivitySchema" xmlns:pfx4="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalAESchema">
                <OtherProperties>
                    <Part>
                        <xsl:value-of select="&#34;Result&#34;"/>
                    </Part>
                </OtherProperties>
                <Body>
                    <pfx:GrantingCreditResult>
                        <xsl:if test="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name">
                            <Name>
                                <xsl:copy-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name/@xsi:nil"/>
                                <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name"/>
                            </Name>
                        </xsl:if>
                        <xsl:if test="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value">
                            <Value>
                                <xsl:copy-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value/@xsi:nil"/>
                                <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value"/>
                            </Value>
                        </xsl:if>
                        <xsl:if test="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund">
                            <Refund>
                                <xsl:copy-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund/@xsi:nil"/>
                                <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund"/>
                            </Refund>
                        </xsl:if>
                        <xsl:if test="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn">
                            <Pawn>
                                <xsl:copy-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn/@xsi:nil"/>
                                <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn"/>
                            </Pawn>
                        </xsl:if>
                        <Interest>
                            <xsl:value-of select="$Examination/ExaminationResult/Interest"/>
                        </Interest>
                        <State>
                            <xsl:value-of select="$Examination/ExaminationResult/State"/>
                        </State>
                        <RealtyValue>
                            <xsl:copy-of select="$Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue/@xsi:nil"/>
                            <xsl:value-of select="$Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue"/>
                        </RealtyValue>
                        <xsl:if test="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail">
                            <RealtyDetail>
                                <xsl:copy-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail/@xsi:nil"/>
                                <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail"/>
                            </RealtyDetail>
                        </xsl:if>
                    </pfx:GrantingCreditResult>
                </Body>
            </ns:ActivityInput>

Transitions:

  • From: Appraisal WaitForJMSQueueMessage -To: Negate Value
    • Label:
    • Condition: Success
    • Description:
  • From: Bonita JMSQueueRequestor -To: Examination
    • Label:
    • Condition: Success
    • Description:
  • From: Examination -To: Result JMSQueueSender
    • Label:
    • Condition: Success
    • Description:
  • From: InputParameters JMSQueueReceiver -To: Appraisal WaitForJMSQueueMessage
    • Label:
    • Condition: $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn = "true"
    • Description:
  • From: InputParameters JMSQueueReceiver -To: Negate Value
    • Label:
    • Condition: $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn = "false"
    • Description:
  • From: Negate Value -To: Bonita JMSQueueRequestor
    • Label:
    • Condition: Success
    • Description:
  • From: Result JMSQueueSender -To: End
    • Label:
    • Condition: Success
    • Description:
Parent topic: Processesparent-topic-arrow
