GetObligator

Section contains description of Process " GetObligator.process " .

Folder description:

Folder Description
CalculateBonita Design Time Library which serves for calculating pretender bonita. This library using EMS for communication.
/ProcessDefinitions All process definitions
/ProcessDefinitions/GetObligator Processes for obtaining informations about loan of obligator.

Process description:

Read informations about obligator loan from xml file

Process definition:

Full process path: ProcessDefinitions/GetObligator/GetObligator.process

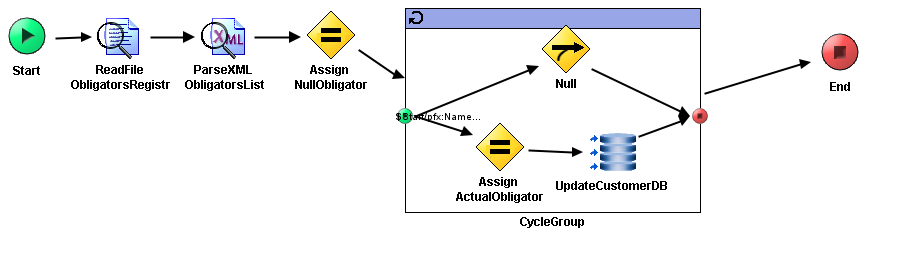

Diagram:

Start End ParseXML ObligatorsList ReadFile ObligatorsRegistr Assign NullObligator Assign ActualObligator Null UpdateCustomerDB From: start To: Null From: start To: Assign ActualObligator From: Null To: end From: UpdateCustomerDB To: end From: Assign ActualObligator To: UpdateCustomerDB From: Start To: ReadFile ObligatorsRegistr From: ReadFile ObligatorsRegistr To: ParseXML ObligatorsList From: CycleGroup To: End From: ParseXML ObligatorsList To: Assign NullObligator From: Assign NullObligator To: CycleGroup

Process starter activity:

Name: Start

Description: Start process with parameter Name (Pretender's name)

Input Parameters:

  • + root (Complex Type, required )
    • - cust_id(xsd:int,required)
    • - Name (XML Element Reference, required )

Process end activity:

Name: End

Output Parameters:

  • - Obligator (XML Element Reference, required )
Return bindings:

  • Mapping table

    Target Source
    /Obligator [COPY-OF] < $Schema0/pfx:Obligator >

  • Mapping tree

    Mapping
    Obligator = [COPY-OF] < $Schema0/pfx:Obligator >

  • Source code

    Mapping
            <xsl:copy-of xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:ns="http://www.tibco.com/pe/DeployedVarsType" xmlns:ns1="http://www.tibco.com/namespaces/tnt/plugins/file" xmlns:pfx="http://www.tibco.com/schemas/GrantingCredit/SharedConnections/Schema1.xsd" xmlns:ns2="http://www.tibco.com/namespaces/tnt/plugins/file/v2" xmlns:xsd="http://www.w3.org/2001/XMLSchema" select="$Schema0/pfx:Obligator"/>

Process variables:

Schema: Schema0

Activities:

Name: Assign ActualObligator

  • Type: com.tibco.pe.core.AssignActivity
  • Resource Type: ae.activities.assignActivity
  • Description: Assign Obligator data when the Obligator name and input name are same
  • Configuration:
    • variableName = Schema0
  • Input bindings:

    • Mapping table

      Target Source
      /Obligator[$ObligatorIndex] [COPY-OF] < $ParseXML-ObligatorsList/pfx:ObligatorsList/pfx:Obligator[$ObligatorIndex] >

    • Mapping tree

      Mapping
      Obligator[$ObligatorIndex] = [COPY-OF] < $ParseXML-ObligatorsList/pfx:ObligatorsList/pfx:Obligator[$ObligatorIndex] >

    • Source code

      Mapping
                      <xsl:copy-of xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:ns="http://www.tibco.com/pe/DeployedVarsType" xmlns:ns1="http://www.tibco.com/namespaces/tnt/plugins/file" xmlns:pfx="http://www.tibco.com/schemas/GrantingCredit/SharedConnections/Schema1.xsd" xmlns:ns2="http://www.tibco.com/namespaces/tnt/plugins/file/v2" xmlns:xsd="http://www.w3.org/2001/XMLSchema" select="$ParseXML-ObligatorsList/pfx:ObligatorsList/pfx:Obligator[$ObligatorIndex]"/>

Name: Assign NullObligator

  • Type: com.tibco.pe.core.AssignActivity
  • Resource Type: ae.activities.assignActivity
  • Description: Set default result as null Obligator strucure
  • Configuration:
    • variableName = Schema0
  • Input bindings:

    • Mapping table

      Target Source
      /Obligator/Name ""
      /Obligator/Value 0
      /Obligator/Problem 0
      /Obligator/Refund 0

    • Mapping tree

      Mapping
      Obligator
 Name = ""
 Value = 0
 Problem = 0
 Refund = 0

    • Source code

      Mapping
                  <pfx:Obligator xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:ns="http://www.tibco.com/pe/DeployedVarsType" xmlns:ns1="http://www.tibco.com/namespaces/tnt/plugins/file" xmlns:pfx="http://www.tibco.com/schemas/GrantingCredit/SharedConnections/Schema1.xsd" xmlns:ns2="http://www.tibco.com/namespaces/tnt/plugins/file/v2" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
                <pfx:Name>
                    <xsl:value-of select="&#34;&#34;"/>
                </pfx:Name>
                <pfx:Value>
                    <xsl:value-of select="0"/>
                </pfx:Value>
                <pfx:Problem>
                    <xsl:value-of select="0"/>
                </pfx:Problem>
                <pfx:Refund>
                    <xsl:value-of select="0"/>
                </pfx:Refund>
            </pfx:Obligator>

Name: Null

  • Type: com.tibco.plugin.timer.NullActivity
  • Resource Type: ae.activities.null
  • Description: Do nothing

Name: ParseXML ObligatorsList

  • Type: com.tibco.plugin.xml.XMLParseActivity
  • Resource Type: ae.activities.XMLParseActivity
  • Description: Parse text input to xml according to ObligatorRegistr xsd schema
  • Configuration:
    • inputStyle = text
    • xsdVersion = default
    • validateOutput = true
    • term
  • Input bindings:

    • Mapping table

      Target Source
      /xmlString $ReadFile-ObligatorsRegistr/ns1:ReadActivityOutputTextClass/fileContent/textContent

    • Mapping tree

      Mapping
      xmlString = $ReadFile-ObligatorsRegistr/ns1:ReadActivityOutputTextClass/fileContent/textContent

    • Source code

      Mapping
                  <xmlString xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:ns="http://www.tibco.com/pe/DeployedVarsType" xmlns:ns1="http://www.tibco.com/namespaces/tnt/plugins/file" xmlns:pfx="http://www.tibco.com/schemas/GrantingCredit/SharedConnections/Schema1.xsd" xmlns:ns2="http://www.tibco.com/namespaces/tnt/plugins/file/v2" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
                <xsl:value-of select="$ReadFile-ObligatorsRegistr/ns1:ReadActivityOutputTextClass/fileContent/textContent"/>
            </xmlString>

Name: ReadFile ObligatorsRegistr

  • Type: com.tibco.plugin.file.FileReadActivity
  • Resource Type: ae.activities.FileReadActivity
  • Description: Read file as text.
  • Configuration:
    • encoding = text
  • Input bindings:

    • Mapping table

      Target Source
      /ReadActivityInputClass/fileName $_globalVariables/ns:GlobalVariables/DefaultObligatorsRegistrFile

    • Mapping tree

      Mapping
      ReadActivityInputClass
 fileName = $_globalVariables/ns:GlobalVariables/DefaultObligatorsRegistrFile

    • Source code

      Mapping
                  <ns2:ReadActivityInputClass xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:ns="http://www.tibco.com/pe/DeployedVarsType" xmlns:ns1="http://www.tibco.com/namespaces/tnt/plugins/file" xmlns:pfx="http://www.tibco.com/schemas/GrantingCredit/SharedConnections/Schema1.xsd" xmlns:ns2="http://www.tibco.com/namespaces/tnt/plugins/file/v2" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
                <fileName>
                    <xsl:value-of select="$_globalVariables/ns:GlobalVariables/DefaultObligatorsRegistrFile"/>
                </fileName>
            </ns2:ReadActivityInputClass>

Name: UpdateCustomerDB

  • Type: com.tibco.plugin.jdbc.JDBCUpdateActivity
  • Resource Type: ae.activities.JDBCUpdateActivity
  • Description:
  • Configuration:
    • timeout = 10
    • commit = false
    • emptyStrAsNil = false
    • jdbcSharedConfig = /SharedConnections/SharedTibco.sharedjdbc
    • statement = UPDATE CUSTOMER SET OBLIGATOR = ? WHERE CUST_ID = ?
    • Prepared_Param_DataType
      • parameter
        • parameterName = obligator_name
        • dataType = VARCHAR
      • parameter
        • parameterName = customer_id
        • dataType = INTEGER
  • Input bindings:

    • Mapping table

      Target Source
      /jdbcUpdateActivityInput/obligator_name $ParseXML-ObligatorsList/pfx:ObligatorsList/pfx:Obligator[$ObligatorIndex]/pfx:Name
      /jdbcUpdateActivityInput/customer_id $Start/root/cust_id

    • Mapping tree

      Mapping
      jdbcUpdateActivityInput
 obligator_name = $ParseXML-ObligatorsList/pfx:ObligatorsList/pfx:Obligator[$ObligatorIndex]/pfx:Name
 customer_id = $Start/root/cust_id

    • Source code

      Mapping
                      <jdbcUpdateActivityInput xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:ns="http://www.tibco.com/pe/DeployedVarsType" xmlns:ns1="http://www.tibco.com/namespaces/tnt/plugins/file" xmlns:pfx="http://www.tibco.com/schemas/GrantingCredit/SharedConnections/Schema1.xsd" xmlns:ns2="http://www.tibco.com/namespaces/tnt/plugins/file/v2" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
                    <obligator_name>
                        <xsl:value-of select="$ParseXML-ObligatorsList/pfx:ObligatorsList/pfx:Obligator[$ObligatorIndex]/pfx:Name"/>
                    </obligator_name>
                    <customer_id>
                        <xsl:value-of select="$Start/root/cust_id"/>
                    </customer_id>
                </jdbcUpdateActivityInput>

Transitions:

  • From: Assign ActualObligator -To: UpdateCustomerDB
    • Label:
    • Condition: Success
    • Description:
  • From: Assign NullObligator -To: CycleGroup
    • Label:
    • Condition: Success
    • Description:
  • From: CycleGroup -To: End
    • Label:
    • Condition: Success
    • Description:
  • From: Null -To: end
    • Label:
    • Condition: Success
    • Description:
  • From: ParseXML ObligatorsList -To: Assign NullObligator
    • Label:
    • Condition: Success
    • Description:
  • From: ReadFile ObligatorsRegistr -To: ParseXML ObligatorsList
    • Label:
    • Condition: Success
    • Description:
  • From: Start -To: ReadFile ObligatorsRegistr
    • Label:
    • Condition: Success
    • Description:
  • From: UpdateCustomerDB -To: end
    • Label:
    • Condition: Success
    • Description:
  • From: start -To: Assign ActualObligator
    • Label:
    • Condition: $Start/pfx:Name = $ParseXML-ObligatorsList/pfx:ObligatorsList/pfx:Obligator[$ObligatorIndex]/pfx:Name
    • Description:
  • From: start -To: Null
    • Label:
    • Condition: Success
    • Description:

Groups:

  • Name: CycleGroup
    • Type: com.tibco.pe.core.LoopGroup
    • Resource Type: ae.process.group
    • Configuration:
      • groupType = repeat
      • serializable = false
      • indexSlot = ObligatorIndex
      • activityOutputName =
      • repeatCondition = ($ObligatorIndex >= $ParseXML-ObligatorsList/pfx:ObligatorsList/@Count) or ($ParseXML-ObligatorsList/pfx:ObligatorsList/pfx:Obligator[$ObligatorIndex]/pfx:Name =$Start/pfx:Name)
      • accumulateOutput = false
