creditRequestSender

Folder description:

Folder	Description
Appraisal	This application gets information about a realty and send this information to one of appraisers (choose momentaly the least busy one). The price of the realty is then sent in EMS message.

Process description:

No description

Process definition:

Full process path: TestProcess/creditRequestSender.process

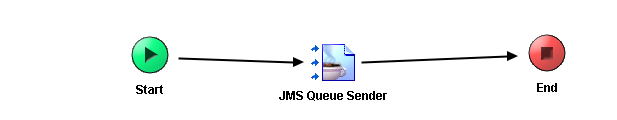

Diagram:

Process starter activity:

Name: Start

Description:

Input Parameters:

+ creditRequest (Complex Type, required )
- - customerName(xsd:string,required)
- - realtyDetails(xsd:string,required)
- - pawn(xsd:boolean,required)

Process end activity:

Name: End

Activities:

Name: JMS Queue Sender

Type: com.tibco.plugin.jms.JMSQueueSendActivity
Resource Type: ae.activities.JMSQueueSendActivity
Description:
Configuration:
- PermittedMessageType = XML Text
- SessionAttributes
  - transacted = false
  - acknowledgeMode = 1
  - maxSessions = 1
  - destination = BANK.APPRAISAL.TEST
- ConfigurableHeaders
  - JMSDeliveryMode = PERSISTENT
  - JMSExpiration = 0
  - JMSPriority = 4
- ConnectionReference = /SharedJMSResources/JMSConn.sharedjmscon
- ApplicationProperties =
- InDataxsdString
  - - CreditRequest (XML Element Reference, required )

Input bindings:

Mapping table

Target	Source
/ActivityInput/Body/CreditRequest/Name	$Start/creditRequest/customerName
/ActivityInput/Body/CreditRequest/RealtyDetail	$Start/creditRequest/realtyDetails
/ActivityInput/Body/CreditRequest/Pawn	$Start/creditRequest/pawn

Mapping tree

Mapping
ActivityInput Body CreditRequest Name = $Start/creditRequest/customerName RealtyDetail = $Start/creditRequest/realtyDetails Pawn = $Start/creditRequest/pawn

Source code

Mapping
<ns:ActivityInput xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:ns2="www.tibco.com/plugin/be" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:ns="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:ns3="www.tibco.com/be/ontology/BEmodule/Events/creditRequest" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:pfx3="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalSchema" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/GrantingCredit/GrantinCreditAESchema" xmlns:pfx="www.tibco.com/be/ontology/Events/creditRequest"> <Body> <pfx3:CreditRequest> <Name> <xsl:value-of select="$Start/creditRequest/customerName"/> </Name> <RealtyDetail> <xsl:value-of select="$Start/creditRequest/realtyDetails"/> </RealtyDetail> <Pawn> <xsl:value-of select="$Start/creditRequest/pawn"/> </Pawn> </pfx3:CreditRequest> </Body> </ns:ActivityInput>

Mapping

            <ns:ActivityInput xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:ns2="www.tibco.com/plugin/be" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:ns="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:ns3="www.tibco.com/be/ontology/BEmodule/Events/creditRequest" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:pfx3="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalSchema" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/GrantingCredit/GrantinCreditAESchema" xmlns:pfx="www.tibco.com/be/ontology/Events/creditRequest">
                <Body>
                    <pfx3:CreditRequest>
                        <Name>
                            <xsl:value-of select="$Start/creditRequest/customerName"/>
                        </Name>
                        <RealtyDetail>
                            <xsl:value-of select="$Start/creditRequest/realtyDetails"/>
                        </RealtyDetail>
                        <Pawn>
                            <xsl:value-of select="$Start/creditRequest/pawn"/>
                        </Pawn>
                    </pfx3:CreditRequest>
                </Body>
            </ns:ActivityInput>

Transitions:

From: JMS Queue Sender -To: End
- Label:
- Condition: Success
- Description:

From: Start -To: JMS Queue Sender
- Label:
- Condition: Success
- Description:

Parent topic: Processes
