GetAccountStateService

Section contains description of Process " GetAccountStateService.process " .

Folder description:

Folder Description
AccountState This application simulate get bank account state process which using rating of client bonita.
/ProcessDefinitions All process definitions
/ProcessDefinitions/GetAccountState Main AccountState processes

Process description:

Get and prepare input parameters for process GetAccountState. Them send request with AccountState.

Process definition:

Full process path: ProcessDefinitions/GetAccountState/GetAccountStateService.process

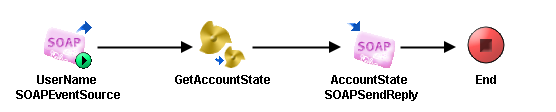

Diagram:

UserName SOAPEventSource End AccountState SOAPSendReply GetAccountState From: UserName SOAPEventSource To: GetAccountState From: GetAccountState To: AccountState SOAPSendReply From: AccountState SOAPSendReply To: End

Process starter activity:

Name: UserName SOAPEventSource

  • Property Name: UserName SOAPEventSource
    • Type: com.tibco.plugin.soap.SOAPEventSource
    • Resource Type: ae.activities.SOAPEventSourceUI
    • Description: Get input parameters from SOAP for GetAccountState process
    • Configuration:
      • service = pfx:GetAccountStateServicePort
      • wsdlNamespaceRoot = http://xmlns.example.com/1171610171437/GetAccountStateOperationImpl
      • operation = GetAccountStateOperation
      • portAddressPrefix =
      • operationStyle = document
      • soapUse = literal
      • embedWsdlComponents = true
      • embedSchemaComponents = true
      • soapAction = /ProcessDefinitions/GetAccountState/GetAccountStateService
      • sharedChannel = /SharedConnections/SOAPHTTPConnection.sharedhttp

Process end activity:

Name: End

Activities:

Name: AccountState SOAPSendReply

  • Type: com.tibco.plugin.soap.SOAPSendReplyActivity
  • Resource Type: ae.activities.SOAPSendReplyUI
  • Description: Send SOAP reply with GetAccountState result
  • Configuration:
    • eventSource = UserName SOAPEventSource
  • Input bindings:

    • Mapping table

      Target Source
      /outputMessage/Account [COPY-OF] < $GetAccountState/ns:Account >

    • Mapping tree

      Mapping
      outputMessage
 Account = [COPY-OF] < $GetAccountState/ns:Account >

    • Source code

      Mapping
                  <outputMessage xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:ns="http://www.tibco.com/schemas/AccountState/SharedResources/Schema.xsd" xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns:pfx="http://xmlns.example.com/1171610171437">
                <xsl:copy-of select="$GetAccountState/ns:Account"/>
            </outputMessage>

Name: GetAccountState

  • Type: com.tibco.pe.core.CallProcessActivity
  • Resource Type: ae.process.subprocess
  • Description: Read informations about account from xml file
  • Configuration:
  • Input bindings:

    • Mapping table

      Target Source
      /Name $UserName-SOAPEventSource/inputMessage/ns:Name

    • Mapping tree

      Mapping
      Name = $UserName-SOAPEventSource/inputMessage/ns:Name

    • Source code

      Mapping
                  <ns:Name xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:ns="http://www.tibco.com/schemas/AccountState/SharedResources/Schema.xsd" xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns:pfx="http://xmlns.example.com/1171610171437">
                <xsl:value-of select="$UserName-SOAPEventSource/inputMessage/ns:Name"/>
            </ns:Name>

Transitions:

  • From: AccountState SOAPSendReply -To: End
    • Label:
    • Condition: Success
    • Description:
  • From: GetAccountState -To: AccountState SOAPSendReply
    • Label:
    • Condition: Success
    • Description:
  • From: UserName SOAPEventSource -To: GetAccountState
    • Label:
    • Condition: Success
    • Description:
